LUNA X2 DALI

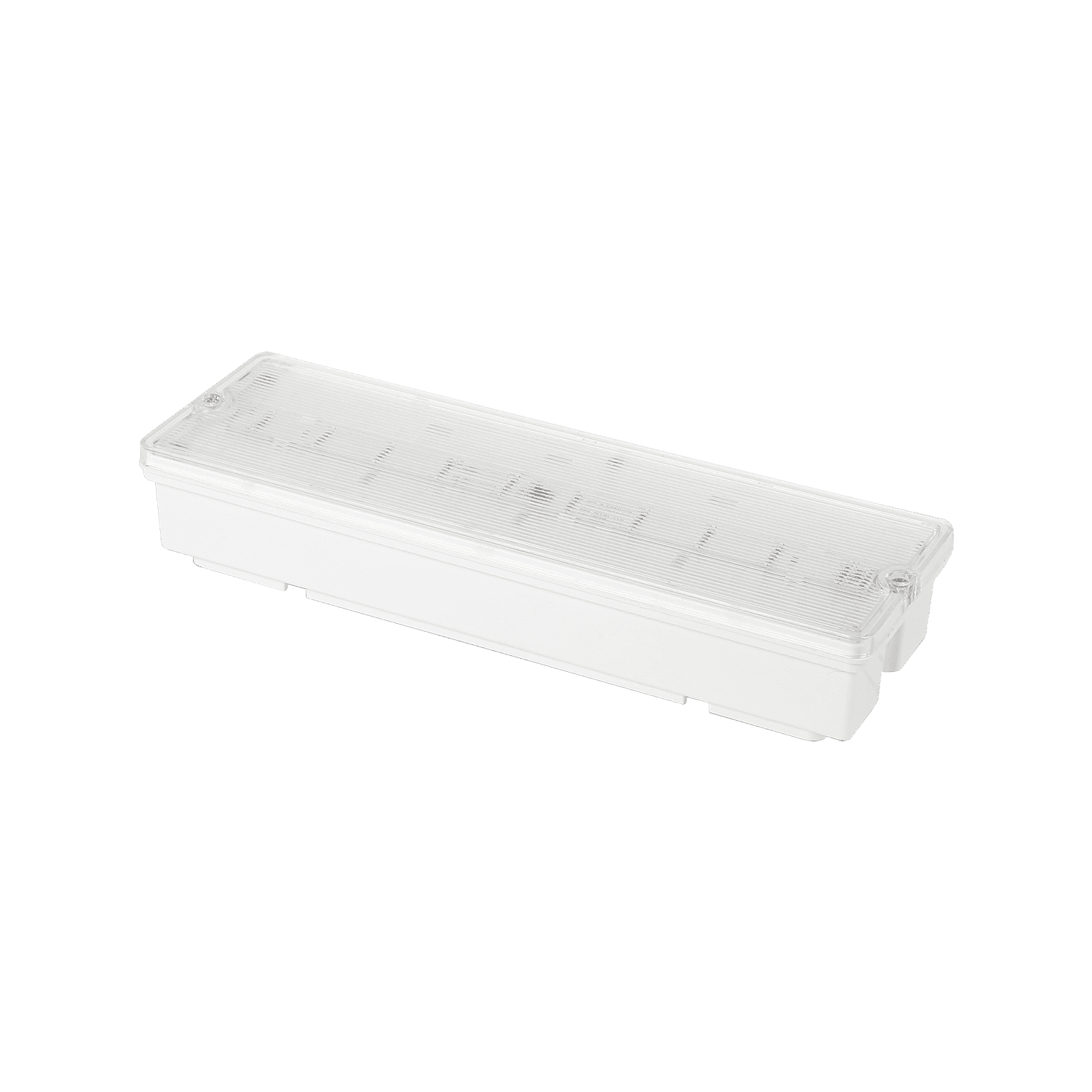

URANUS LUNAX2 DALI 3W EMERGENCY IP65 NMT

A. Emergency Exit Luminaires

Design: Available in one-sided or double-sided models with graphic signs for orientation.
Installation: Wall, ceiling, or suspended ceiling mounted; can be hung using hangers, chains, or slings.
Operation Types:
- Non-Maintained: Lights activate only during power failure.
- Maintained: Lights remain on during both normal and emergency conditions.
Sign Formats: Pictograms with white drawings on a green background, compliant with EN 1838 standards.
Viewing Distance: Maximum viewing distance calculated as d = s × h (where s = 100 for externally illuminated signs, s = 200 for internally illuminated signs).
Lighting Duration: Minimum 60 minutes (120 minutes for buildings with 200+ occupants).

B. Emergency Lighting Luminaires

Types:
- Escape Route Lighting: Illuminates escape routes; minimum 1 lux at the central line.
- Open Area Lighting (Anti-Panic): For areas larger than 60 m²; minimum 0.5 lux.
- Highly Risky Task Area Lighting: For hazardous areas; minimum 15 lux.
Mounting Height: 2–4.5 meters for escape route luminaires.
Operation Modes:
- Non-Maintained: Activates only during power failure.
- Maintained: Always on, continues during power failure.
Battery: Ni-Cd or optional LiFePO4/Ni-MH; charging time typically 24 hours.
Protection Class: IP20 to IP65, depending on the model.
Certifications: Compliant with EN 60598-1, EN 60598-2-22, and EN 1838 standards.

C. DALI (Digital Addressable Lighting Interface)

Features:
- Central monitoring via touch screen panel.
- Addressable emergency lighting system.
- Instant or periodic functional and duration tests.
- Remote monitoring and reporting.
- Compatible with EN 62034 Automatic Test Systems Standard.
Components:
- URANUS Panel: Management panel with 7-inch touch screen, WiFi/Ethernet connectivity, and password protection.
- URANUS Router: Bridges panel and luminaires; supports 128 DALI devices per router.
- DALI Repeater: Extends DALI line distance up to 1200 meters.

Item Code	Dimensions	Technical	Certifications	Drawings
@BMURMLUNAX2DLI1WD	L341 x W108 x H72MM	Data Sheet	No File	No File

A. Installation

Standards Compliance: Follow EN 50172 and EN 1838 for installation.
Locations: Mandatory in escape routes, gathering points, elevators, workshops, electrical rooms, car parks, and hazardous areas.
Mounting Height: 2–4.5 meters for optimal visibility.
Cabling:
- Use double-insulated cables for mains and data lines.
- RS485 cables: Shielded twisted pair, 100–120 Ohm impedance.
- DALI cables: Maximum 300 meters per line; use repeaters for extension.
Polarity: RS485 connections require correct polarity (A and B terminals).

B. Usage

Testing:
- Functional tests: At least monthly.
- Duration tests: At least annually.
Maintenance:
- Replace batteries every 5 years or as indicated by failure alerts.
- Ensure luminaires are free from obstructions.
Environmental:
- Operate within specified temperature ranges (e.g., -5°C to +40°C).
- Avoid exposure to moisture unless luminaire is IP65-rated.

A. Installation

Flexibility: Multiple mounting options (wall, ceiling, recessed, surface).
Ease of Addressing: Automatic addressing of DALI devices by routers.
Scalability: Supports up to 2048 devices with 16 routers and 96 repeaters.
Simplified Wiring: Polarized RS485 and non-polarized DALI connections reduce installation errors.

B. Usage

Centralized Monitoring: Real-time status updates via touch screen panel.
Automated Testing: Scheduled functional and duration tests with automatic reporting.
Remote Access: Manage and monitor the system via WiFi/Ethernet from any location.
User-Friendly Interface: Intuitive 7-inch touch screen with visual indicators for device status.

C. Advantages

Safety Compliance: Meets EN and IEC standards for emergency lighting.
Energy Efficiency: LED technology with long lifespan (up to 50,000 hours).
Reliability: Overcharge and deep discharge protection for batteries.
Durability: Robust construction with IP20–IP65 protection classes.
Customization: Optional features like symmetric/asymmetric lenses, 110 VAC compatibility, and battery types.
Integration: Dry-contact connections for Fire Alarm and BMS systems.
Certification: Kitemark certified by BSI for automatic test systems.
