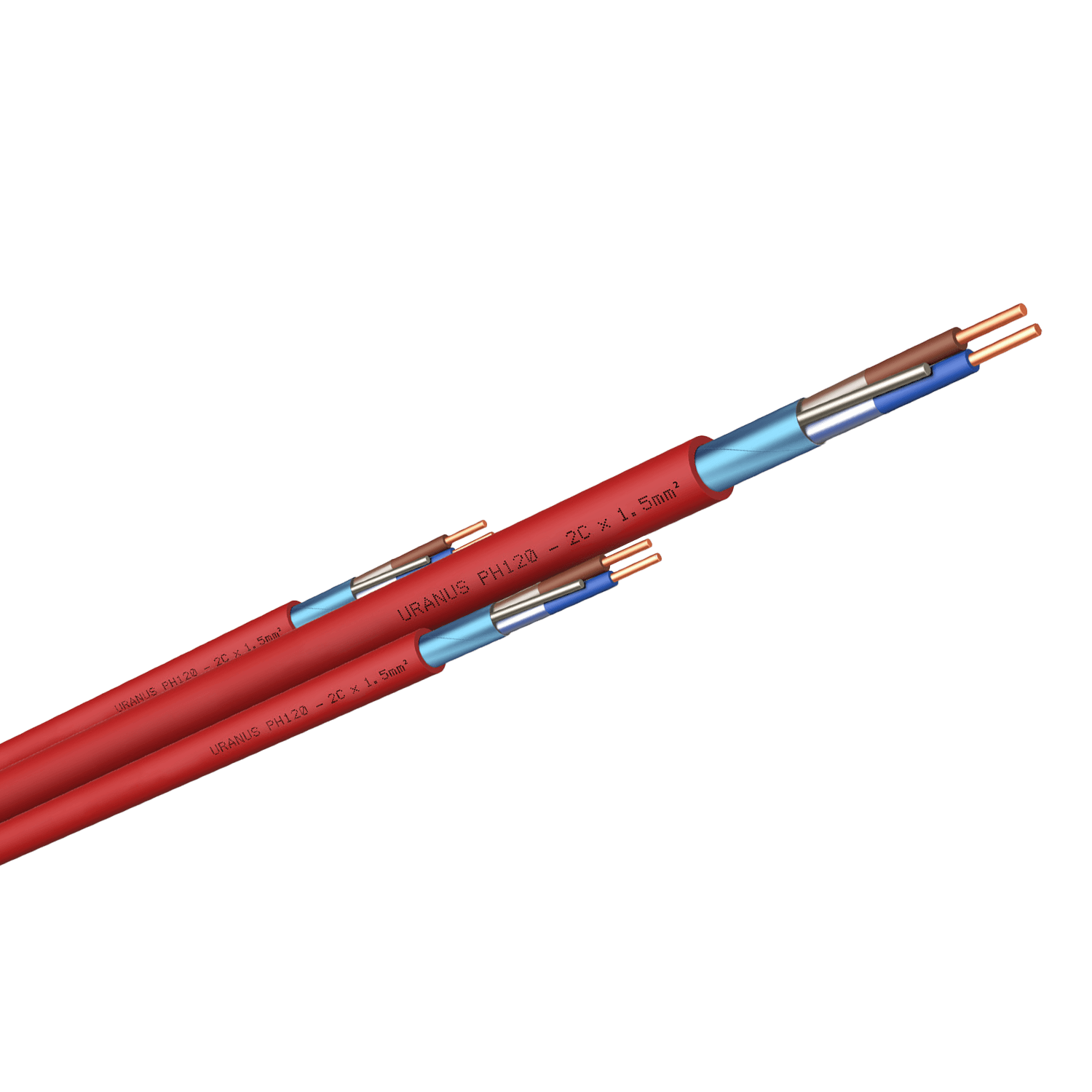

Product Characteristics

• Fire Resistance Rating: Designed to maintain circuit integrity for up to 120 minutes (PH 120) under fire conditions as per IEC 60331 / BS 6387 standards.
• Conductor: High-conductivity, stranded, annealed copper conductor complying with IEC 60228 Class 2 or Class 5.
• Insulation: Special mica/glass tape fire barrier combined with XLPE, LSZH (Low Smoke Zero Halogen) insulation for superior flame and heat resistance.
• Sheath: LSZH outer sheath emits minimal smoke and zero halogen gases during fire, ensuring visibility and low toxicity in evacuation scenarios.
• Operating Voltage: Typically rated for 300/500V or 600/1000V (depending on design).
• Operating Temperature Range: Continuous operation between -15°C to +90°C.
• Compliance: Meets or exceeds standards like IEC 60331, IEC 60332, BS 7629, BS 6387 (CWZ), and EN 50200.

 Recommendations and Restrictions

Recommendations

• Ideal for emergency power circuits, fire detection and alarm systems, emergency lighting, control circuits, and public address/voice evacuation systems.
• Recommended for use in high-rise buildings, hospitals, airports, tunnels, data centers, and industrial facilities.
• Install using fire-resistant glands, cleats, and junction boxes to maintain full system integrity.
• Ensure proper termination with fire-rated accessories for continued performance under fire conditions.

Restrictions

• Not suitable for direct burial without additional mechanical protection unless specified.
• Avoid excessive bending or pulling during installation to prevent damage to fire barrier layers.
• Not intended for underwater or submerged applications unless specifically designed for such conditions.
• Must be installed by qualified electrical personnel following applicable fire safety codes and manufacturer guidelines.
